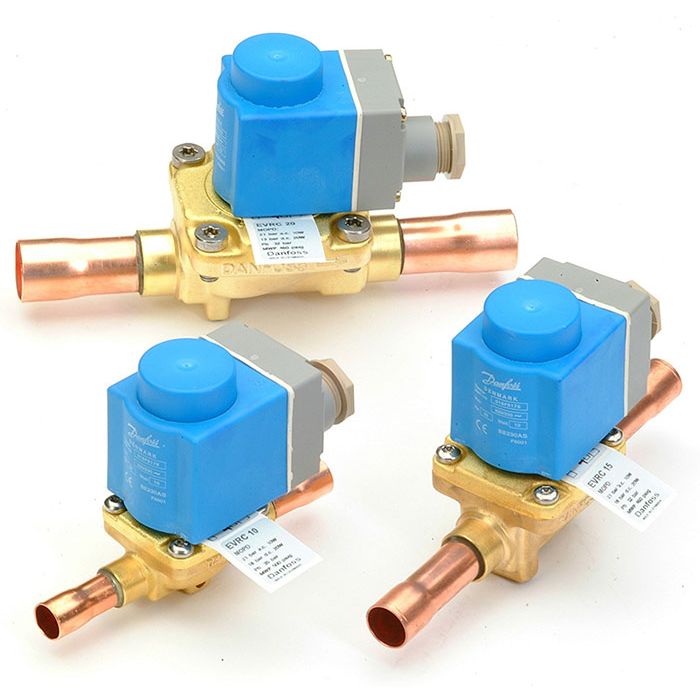

032F5219 EVR 6 Клапан соленоидный Danfoss
По запросу
SKU
r_danfoss_032F5219
Refrigerants: R22/R407C, R404A/R507, R410A, R134a, R407A, R23. For other refrigerants, please contact Danfoss. Temperature of medium: –40 - +105°C (10 W / 12 W coil). Max. 130°C during defrosting. Min. opening differential pressure, EVR 2-3: 0.0 bar, EVR 6-22: 0.05 bar, EVR 25-32: 0.20 bar.
Цены со скидкой действуют при заказе от 7000 руб
Минимальная сумма заказа составляет 4000 руб
032F5098 EVR 10 NC Клапан соленоидный Danfoss Предыдущий
Characteristic |
Value |
| Type | EVR 6 |
| Weight | 0.233 Kg |
| Actuator system [mm] | 13,5 mm |
| Ambient temperature [°C] | -40 - Coil dependend |
| Approval | EAC, LLC CDC TYSK |
| Coil | No |
| Cv value [gal/min] | 0,920 gpm US |
| Direction | Straightway |
| EAN number | 5702422173120 |
| Function | N C |
| Identical product | 032F1212 |
| Inlet connection type | SOLDER, ODF |
| Inlet size [in] | 3/8 IN |
| Kv value [m³/h] | 0,800 m3/h |
| Manual Operation | No |
| Max. Working Pressure [bar] | 45,2 bar |
| Max. Working Pressure [psig] | 655 psig |
| Medium temperature range [°C] | -40 - 105 °C |
| Medium temperature range [°F] | -40 - 221 °F |
| Min. ODP [bar] | 0,050 bar |
| MOPD [bar/psi] | Coil Dependend |
| Orifice size [mm] | 6,00 mm |
| Outlet connection type | SOLDER, ODF |
| Outlet size [in] | 3/8 IN |
| Pack format | Industrial pack |
| Product Group | Solenoid valves |
| Product name | Solenoid valve |
| Quantity per pack format | 25 pc |
| Refrigerant(s) | R134a |
| Refrigerant(s) | R22/R407C |
| Refrigerant(s) | R23 |
| Refrigerant(s) | R404A/R507 |
| Refrigerant(s) | R407A |
| Refrigerant(s) | R410A |
| Type designation | Solenoid valve, Solder |
