032H8067
По запросу
SKU
ia_danfoss_032H8067

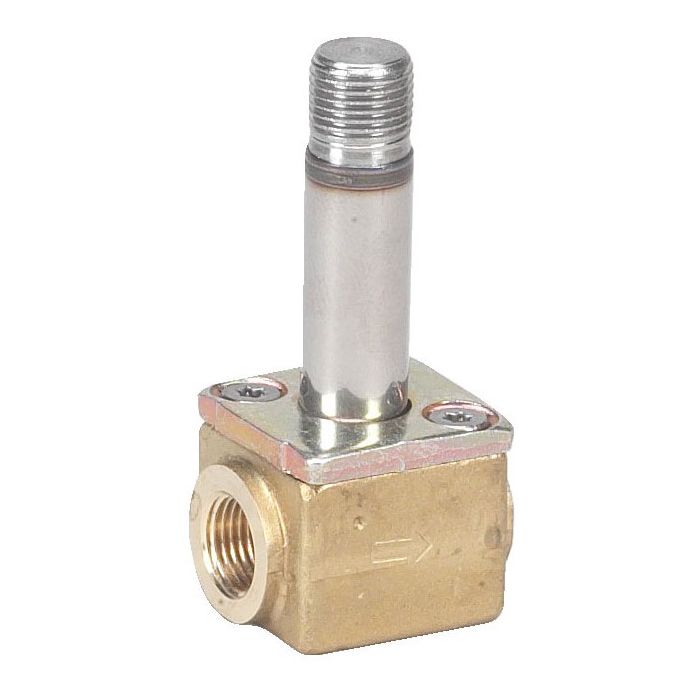

EV210A covers a wide range of small, direct-operated 2/2-way solenoid valves for use in industrial machinery.The compact design together with the broad range of coils means that EV210A covers a broad variety of industrial applications.
Цены со скидкой действуют при заказе от 7000 руб
Минимальная сумма заказа составляет 4000 руб
032H8025 Клапан электромагнитный EV210A, Ду 1.2 мм, нерж. сталь, FKM, G1/8, нормально закрытый Danfoss Предыдущий
Characteristic |
Value |
| Type | EV210A |
| Weight | 0.052 Kg |
| Actuator size | 9 mm |
| Actuator size [in] | 0.35 in |
| Ambient temperature max. [°C] | 50 °C |
| Ambient temperature max. [°F] | 122 °F |
| Body material | Brass |
| Connection | Flange 22 mm |
| Cv value [gal/min] | 0,130 gpm US |
| Differential pressure [bar] | 0 - 22 bar |
| Differential pressure [psi] | 0,0 - 314,3 psi |
| EAN | 5702423050864 |
| Function | N C |
| Kv value [m³/h] | 0,110 m3/h |
| Max. Working Pressure [bar] | 50,0 bar |
| Max. Working Pressure [psig] | 715 psig |
| Medium temperature range [°C] | 0 - 100 °C |
| Medium temperature range [°F] | 32 - 210 °F |
| Number of ways | 2/2 |
| Operation | Direct-operated |
| Orifice size [in] | 5/64 in |
| Orifice size [mm] | 2,00 mm |
| Packing format | Multi pack |
| Quantity per packing format | 16 pc |
| Seal material | FKM |
| Type designation | Solenoid valve |
