061H5143

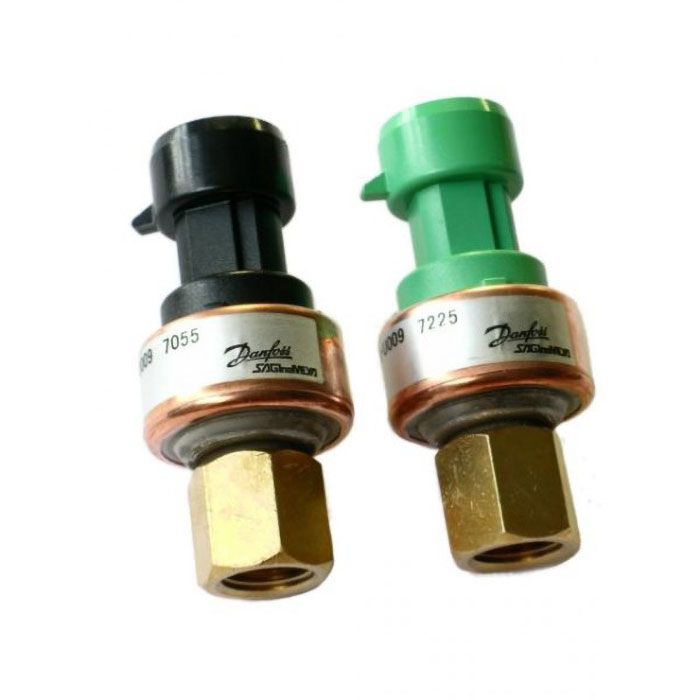

NSK is a ratiometic pressure transmitter (0.5 to 4.5V DC). Pressure range: -1 to 50 bar. Compact, light-weight and high accuracy. Can be installed in any position. Ambient temperature: -30 ºC to 100 ºC, -30 ºC to 85 ºC for NSK-BE007*-U009. Fluid temperature range: -30 ºC to 120 ºC, -30 ºC to 85 ºC for NSK-BE007*-U009. Power supply: 5V DC ± 0.25V. Power supply current: 10 mA or less. Load resistance: 10 kOhm or more / 1000pF or less. Weight: 0.04 kg.
