068Z7005

Оставить отзыв

По запросу

SKU

r_danfoss_068Z7005

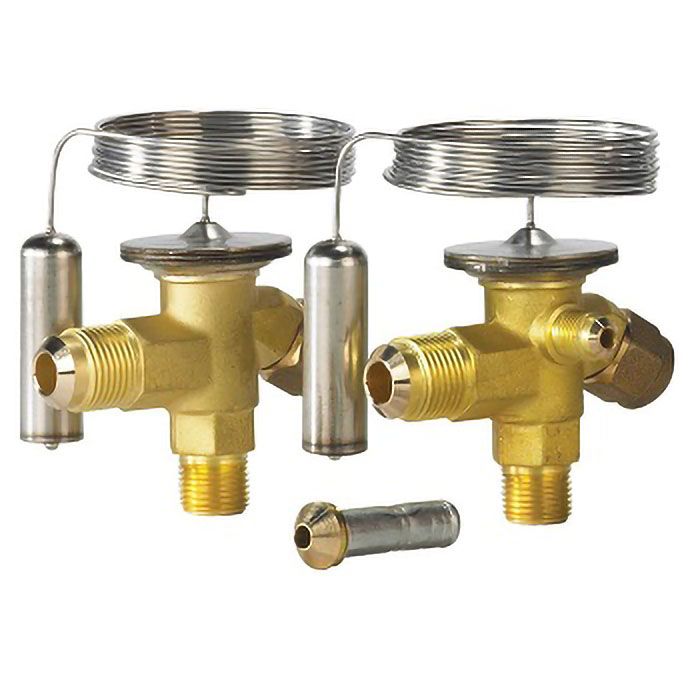

Angleway valve body, inlet size 3/8 inch, capillary tube length 1.5 m, max. working pressure 34.0 bar. Equalization connection size, TE 2, flare/solder, versions with mm-connections: 6 mm, versions with in.-connections: 1/4 in.

Цены со скидкой действуют при заказе от 7000 руб

Минимальная сумма заказа составляет 4000 руб

Подробности

Characteristic	Value
Type	TS 2
Weight	0.260 Kg
Approval	EAC, LLC CDC TYSK
Body material	BRASS
Capillary tube length [in]	59,0 in
Capillary tube length [mm]	1.500 mm
Direction	Angleway
EAN number	5702428025713
Identical product	068Z3420
Inlet connection type	Flare
Inlet size [in]	3/8 IN
Max. Working Pressure [bar]	34,0 bar
Max. Working Pressure [psig]	500 psig
MOP Point	MOP 30 / -20 °C
MOP Point [°F]	-5 °F
Outlet connection type	Solder
Outlet/Equalization size [in]	1/2 IN
Pack format	Industrial pack
Pressure equalization	Internally equalized
Product description	Thermostatic Expans. Valve
Product Group	Expansion valves
Product name	Element for expansion valve
Quantity per pack format	45 pc
Refrigerant(s)	R404A/R507
Static Superheat (SS) [°C]	4,0
Static Superheat (SS) [°F]	7,20 °F
Temperature range [°C]	-60 - -25 °C
Temperature range [°F]	-75 - -15 °F
